V2X Module SOM-352

High Integration, Low Latency, Global Standards Compliant

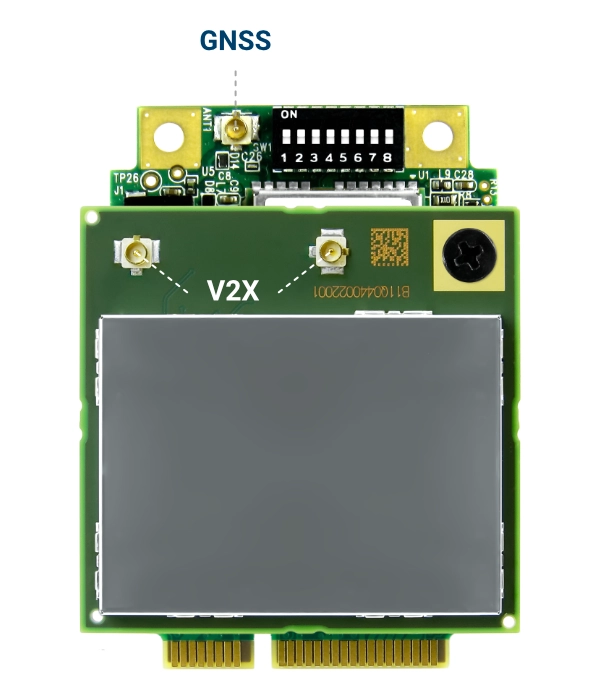

51.0±0.3 GNSS V2X 38.5±0.3 11.5±0.3
SOM-352UC
US C-V2X
C-V2X stack optimized for US requirements.
FCC OmniAir
SOM-352UD
US DSRC
US DSRC / IEEE 1609 stack integration.
FCC
SOM-352EC
Europe C-V2X
Europe ETSI C-V2X stack implementation.
FCC
SOM-352ED
Europe DSRC
Europe ETSI ITS-G5 stack configuration.
FCC

SOM-352 is a complete V2X function sub-system. With an embedded V2Xcast® (V2X stack and SDK) in mPCIe, its design can effortlessly embedded into any existing vehicle/industrial PC, or communication platform, and easily perform secondary software development to enable V2X or V2X-sensor fusion applications for commercial vehicles, intelligent transportation, and smart road traffic applications.

Global V2X supported, SOM-352 can flexibly shift between DSRC-V2X or C-V2X with one V2X stack (US IEEE 1609/J2735 or Europe ITS-G5 V2X protocol standard) through re-flashing firmware, reducing the cost and complexity for global deployment. Consistent V2Xcast® API preserves all the value of software add-ons for any future technology change or protocol standard update.

With embedded C-ITS or ITS-G5 or IEEE 1609 stack/SAE J2735 Messages and ready-to-use V2X service profiles, users can directly configure the profiles to compose J2735 or ITS Messages per service requirements, and develop V2X applications without the hassle of handling or setting the V2X protocol details from scratch.

Advanced GNSS functions include Dead Reckoning with integrated IMU, update rate over 20Hz GNSS and multiple concurrent constellations; these provide better positioning accuracy, time synchronization, and lane-leveled position accuracy for smoother vehicle trajectory on urban roads.

  • Complete V2X system in small 50.95 x 38.5 mm product size with standard mPCIe pin-definition, containing CRATON2/PLUTON2 V2X chipsets, GNSS, eHSM, 256MB DDR3 RAM, 512MB NAND, and V2Xcast® software.
  • A rich V2Xcast® firmware containing:
    • Standard compliant V2X stacks.
    • User friendly APIs for Service, Tx/Rx, PoTi, J2735 or ITS-G5 compliant Messages encode/code.
    • Application example codes, including Event Detector to detect remote vehicle and roadside events, Traffic Signal Detector to detect current position’s signal phase, RTK Sample Application to improve GNSS accuracy.
  • Dead Reckoning with integrated IMU, update rate over 20Hz GNSS and multiple concurrent constellations provide better positioning accuracy and time synchronization for V2X applications.
  • Secured V2X communication supports SCMS or CCMS including the V2X PKI certificate management and the private key operation on the embedded Hardware Security Module (eHSM).
  • In addition to standard mPCIe connection, an additional external Molex 7-pin onboard connector can be used as a supplement to support the inputs which is not supported directly from the host mPCIe slot.
  • Antenna detection and diagnose supported.
  • Support DFU mode using command from the host platform to update the SOM firmware.
  • Wide-ranged -40°C ~ +85°C operating temperature complies with industrial application requirements.
  • Software-defined design lets the SOM flexibly shift between DSRC-V2X or C-V2X with one V2X stack (IEEE 1609 or ITS-G5 V2X standard) through re-flashing firmware.
  • Lowest entry and total ownership cost: ready-to-be-used V2X sub-system with bundle license right to use V2Xcast® software on the hardware (per MAC address) and SDK at one fixed price, no extra license fee or royalty required.
  • Operation System
    • Linux Yocto
  • Form Factor
    • PCI Express Mini Card (Mini PCIe), 51.0 mm x 38.5 mm PCBA size, 8.5 mm wider than the standard
  • Host Interface
    • USB 2.0 (480 Mbits/s)
  • System Memory
    • 512MB NAND, 256MB DDR3
  • Preloaded Firmware
    • SOM-352EC: V2Xcast® ETSI C-ITS stack including LTE-V2X (PC5), CAM/DENM, GN/BTP, Security, PoTi
    • SOM-352ED: V2Xcast® ETSI ITS-G5 stack including IEEE802.11p, Facility Message, GN/BTP, DCC, Security, PoTi
    • SOM-352UC: V2Xcast® IEEE1609 stack /SAE J2735 Message for C-V2X including 1609.2, 1609.3, IEEE1609.2.1, SAE J2735, PoTi
    • SOM-352UD: V2Xcast® IEEE1609 stack /SAE J2735 Message for 802.11p WAVE including 1609.2, 1609.3, 1609.4, IEEE1609.2.1, SAE J2735, PoTi
  • Development Tool
    • V2Xcast® SDK, including Service, Tx/Rx, PoTi, J2735 or ITS-G5 compliant Message APIs and application example codes
  • Hardware Security
    • Dedicated ROM containing certified secure V2X signing firmware
    • Secure encrypted off-chip storage of private keys
    • Private material is inaccessible outside HSM
    • Capable of >110 signatures / second, with <9ms signing latency for ECDSA NIST P256 or ECDSA Brain pool P256R1
    • Line-rate ECDSA verification engine (>2500 ECDSA NIST P256 verifications / second)
    • Tamper detection* (*. Support by project)
  • V2X
    • Supported Frequency band: 5.895 ~ 5.925 GHz
    • DSRC-V2X Radio mode: 802.11p
    • C-V2X Radio mode: 3GPP LTE-V2X Rel.14/15 PC5 sidelink
    • RF transmit power: max. +20dBm on antenna port, Class C RF spectrum mask compliant with margins
    • RF receive power: PER ≤ 10%/ -86 dBm, PER ≤ 10% -40 – +85 °C/ -82 dBm
    • Remarks: For legacy DSRC WAVE applications, 1). channel switch in 1609.4, and 2). WSA broadcast for ETC are not supported.
  • GNSS
    • Update rate: max. 20Hz
    • Sensitivity:
      • Acquisition: -146dBm
      • Navigation: -159dBm
      • Tracking: -159dBm
    • NMEA Standard: NMEA 0183
    • Accuracy: sub-meter (CEP50 with SBAS)
    • Constellation support: GPS L1, GLONASS L1, Galileo E1, Beidou B1, and QZSS L1.
    • SBAS L1 C/A support: WAAS (US), EGNOS (EU), MSAS/SLAS (JP), and GAGAN (IN).
  • Power Consumption
    • typical 2Watt~4Watt
  • On-board Interface
    • Mandatory mini PCIe interfaces used:
      • USB 2.0 (480Mbits/s)
      • 3.3V mini PCIe power input
      • 5V power input (proprietary)
    • RF interfaces:
      • two MHF I RF connectors (V2X)
      • one MHF I RF connector (GNSS)
    • Optional Proprietary interface:
      • one UART, one 1PPS, one Reset, one Tamper on mPCIe
      • one external Molex connector as mPCIe inputs back-up
  • ESD design
    • ESD protects all ports in ESD events. (IEC 61000- 4-2 Level 4, Contact ±8kV, Air ±15kV)
  • Operation Temperature and Transmission Distance
    • ambient: -40°C ~ +85°C
    • typical 300 meters, may reach 1,000 meter in open space
  • OmniAir® Certification
    • SOM352UC conforms and awarded OmniAir’s LTE-V2X (PC5) R1.0 certification complying to test specifications 759::761 (3GPP 36521), 762 (SAE J3161_1), 763 (IEEE 1609.2) and 765 (IEEE 1609.3). See OmniAir’s website (www.omniair.org) for details.
  • EMC RF Regulation
    • CE: TBD, FCC ID: NUK-VTX352C, CISPR25 Class 5 (Q4/2025)
  • Storage Humidity
    • max. 95%, non-condensing
  • Dimension
    • 51.0±0.3mm (L) x 38.5±0.3mm (W) x 11.5±0.3mm (H)
