EX-55 產品說明書

Operating Temperature:

-20ºC ~ +65ºC

Humidity:

10 ~ 95% RH

Dimensions:

21.8 x 215.5 mm

Enclosure Material:

ABS

Weight:

26.5 g

Color:

Black

Connector:

FAKRA Z Jack (SMB)

Connector Material:

• Plastic Housing: Nylon
• Body: Brass
• Center Contact: Brass
• Insulator: Teflon
• Operating Temperature: -40ºC ~ +105ºC

Frequency Range:

5150 ~ 5950 MHz

Impedance:

50 Ohm

VSWR:

≤ 2.5

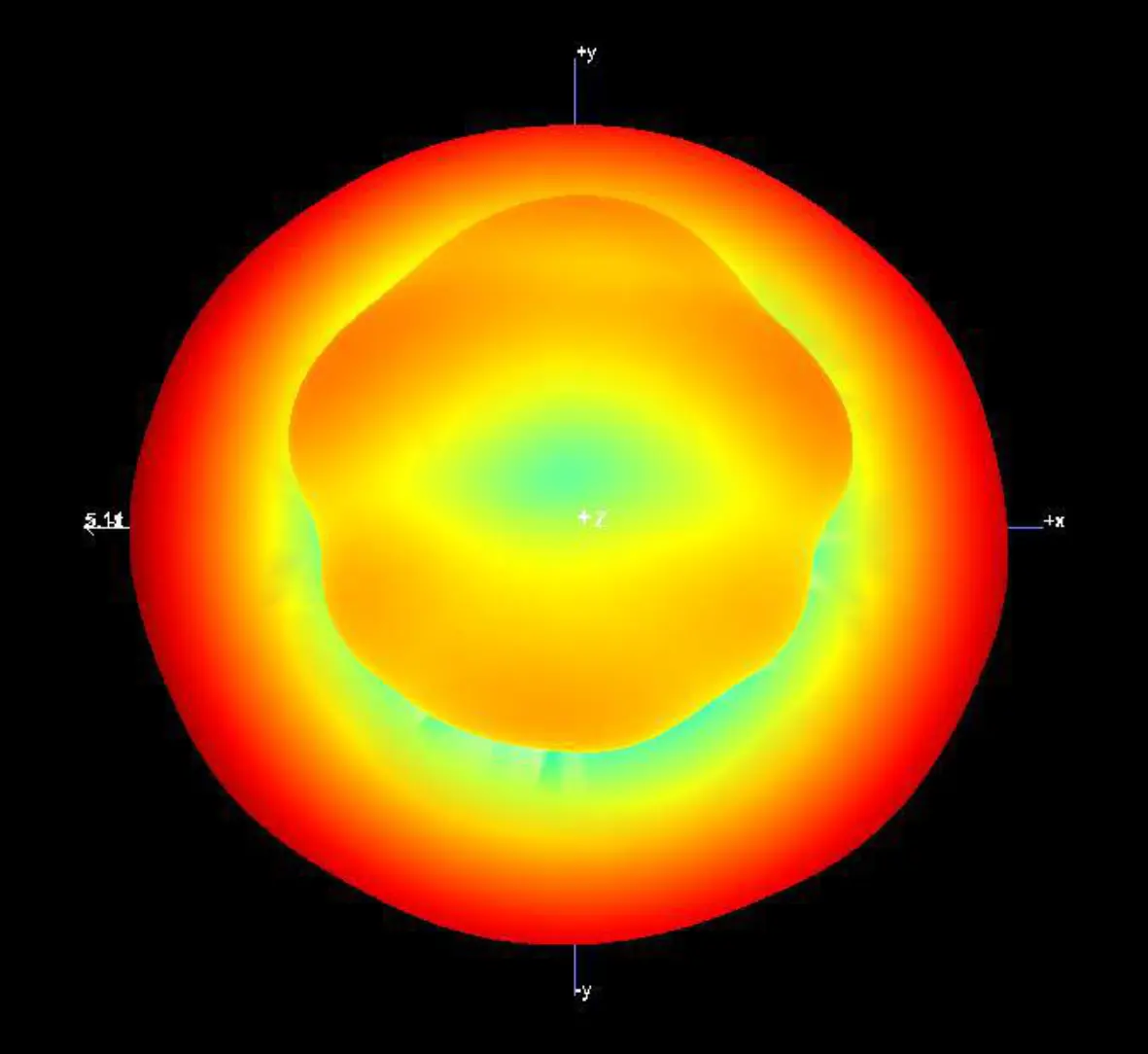

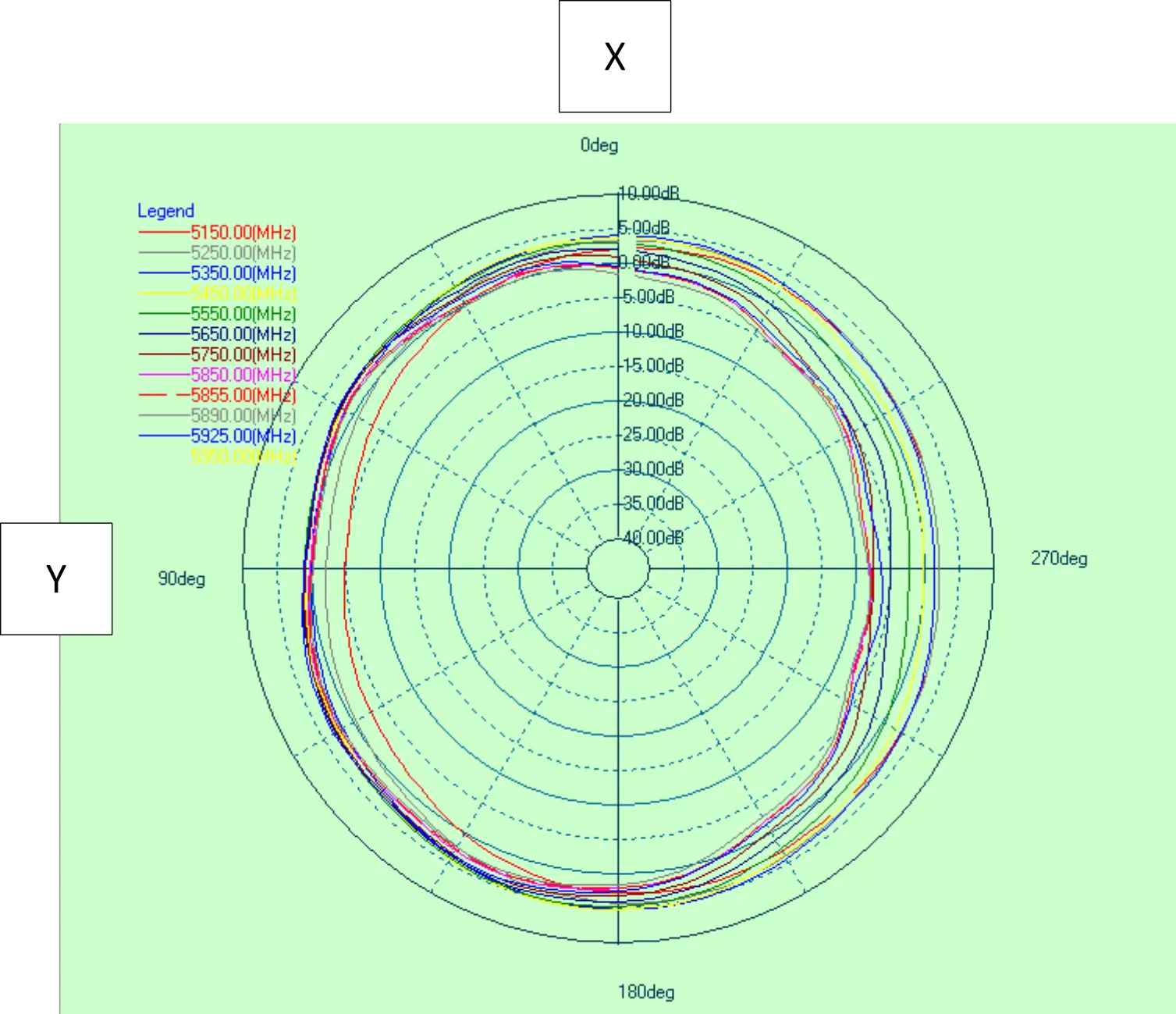

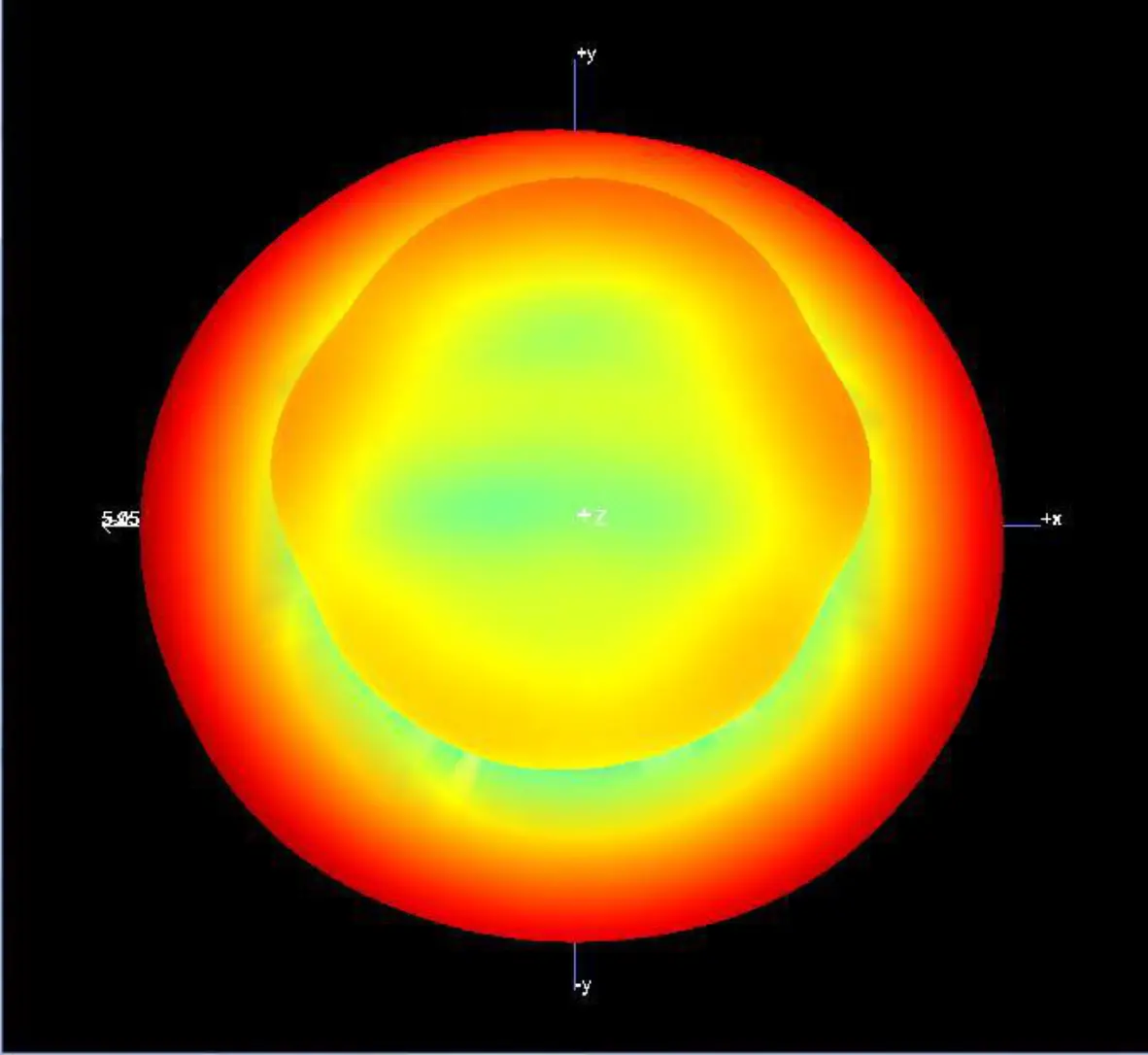

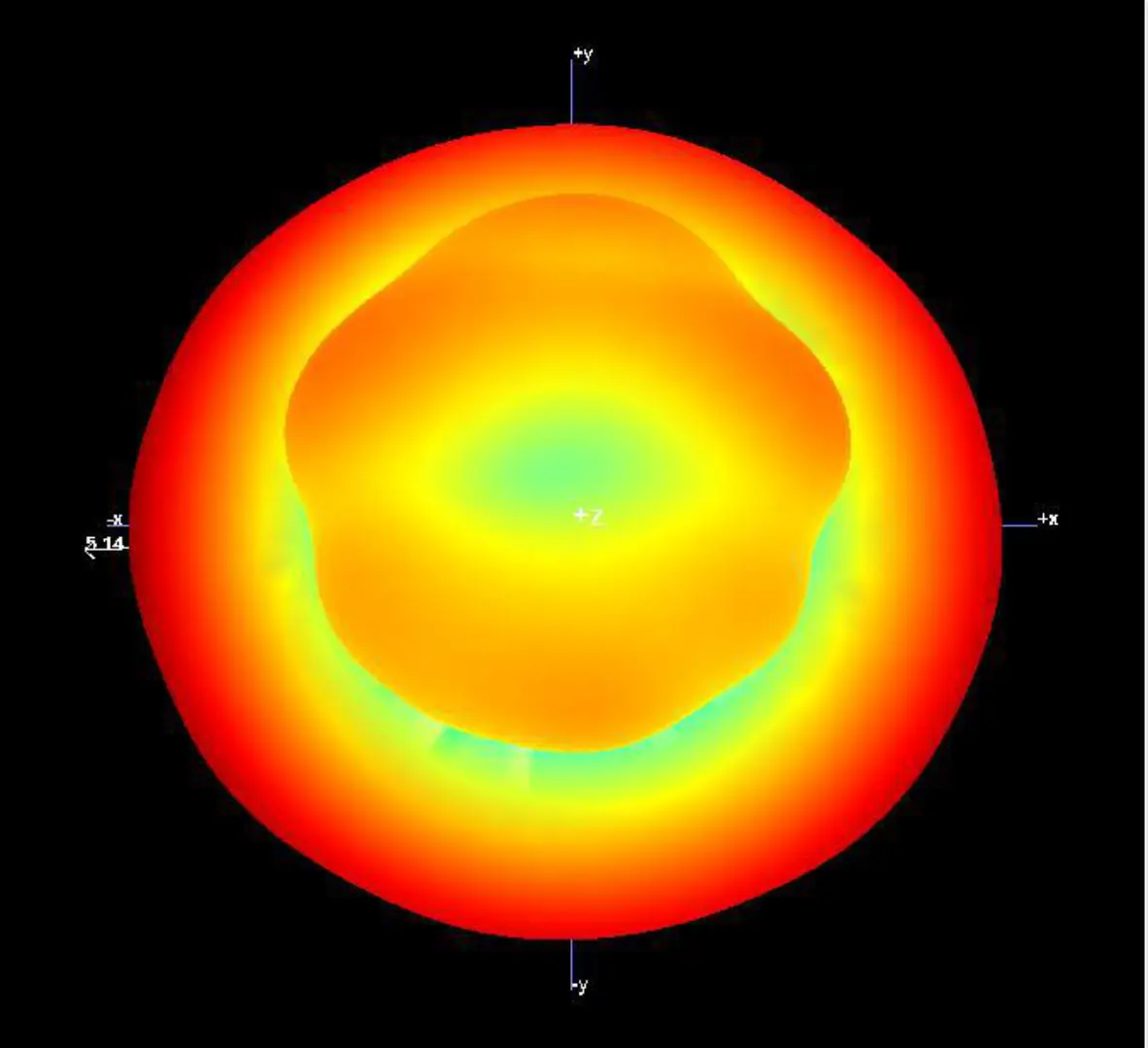

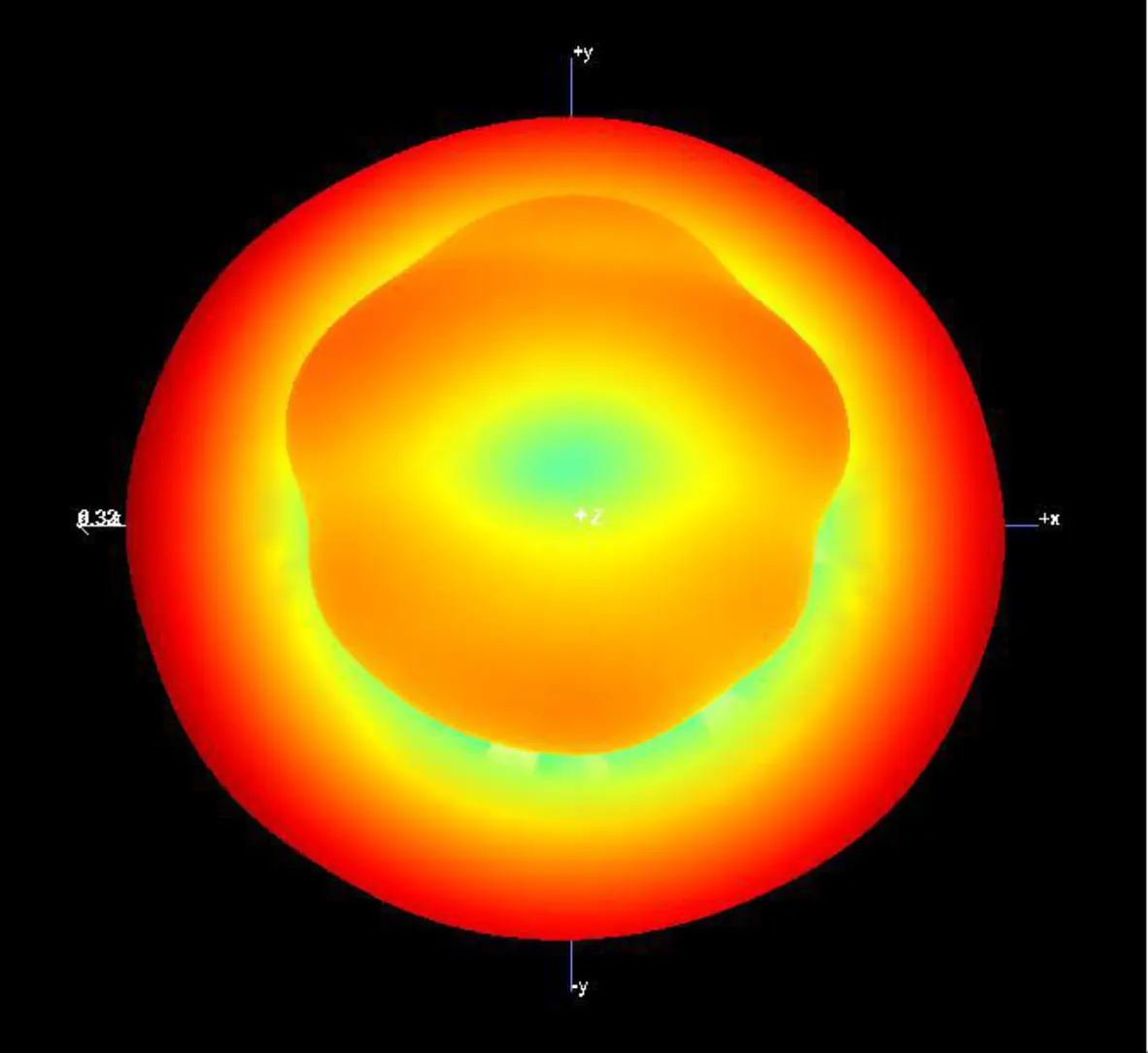

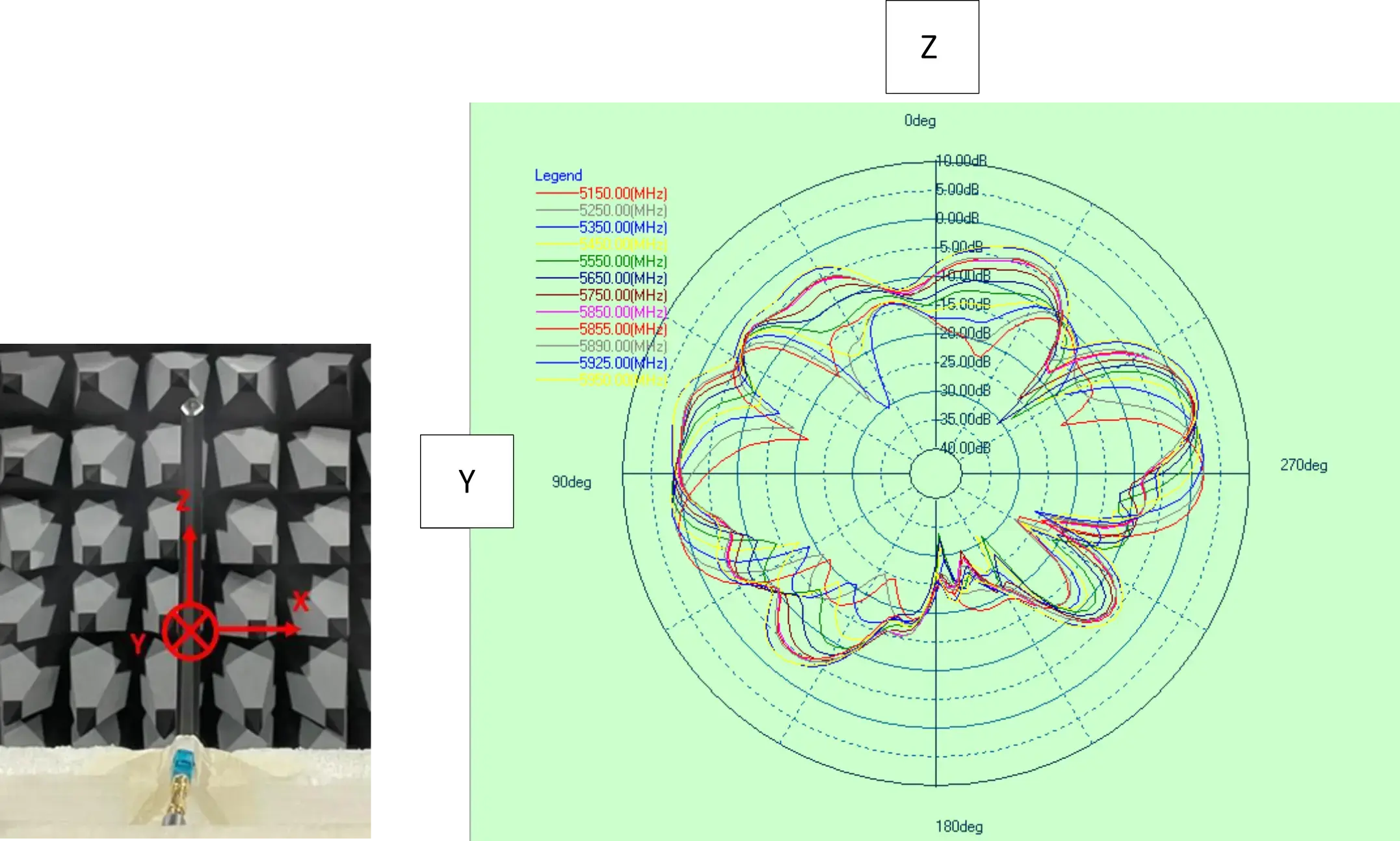

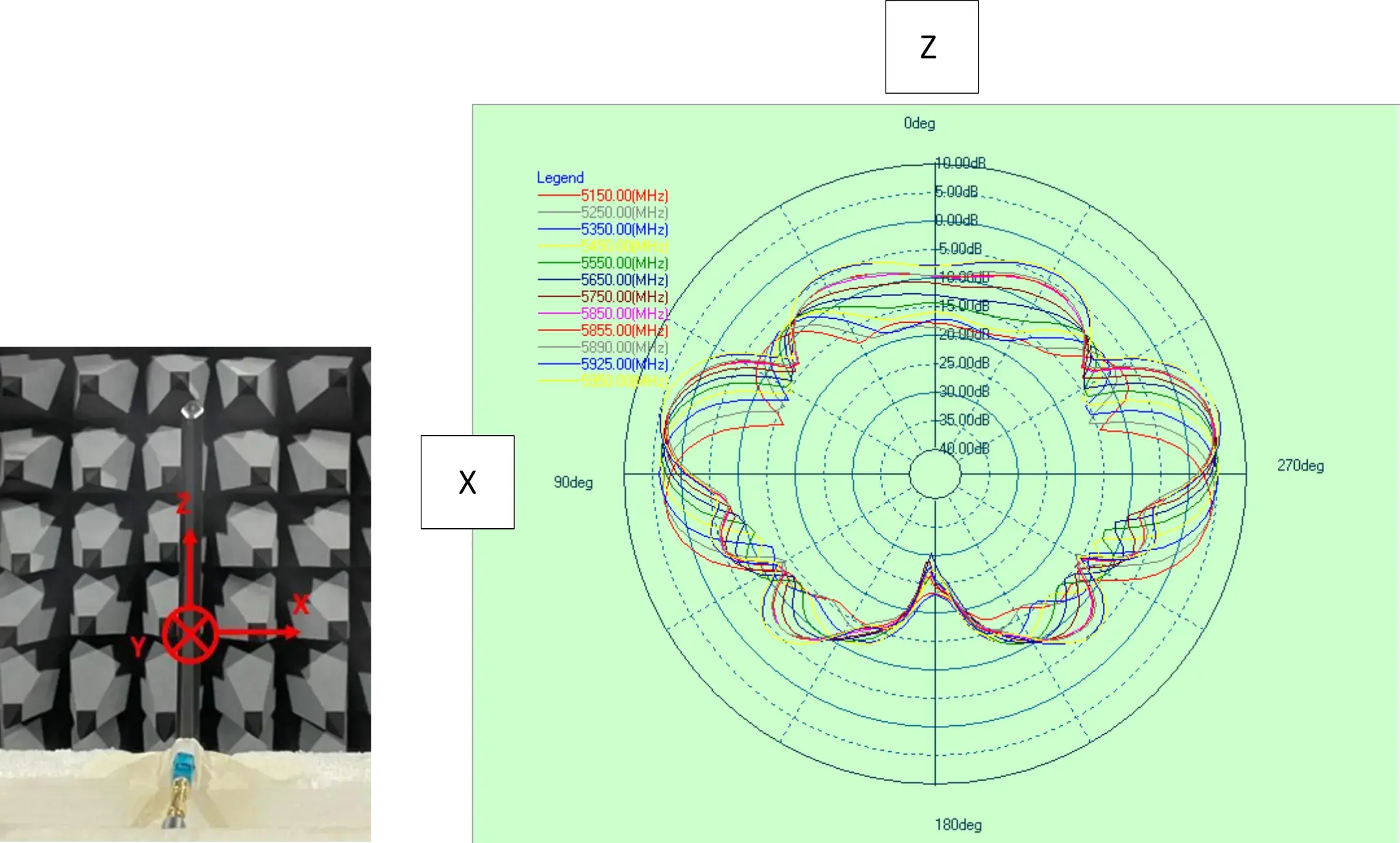

Radiation:

Omni

Gain:

5 dBi

Polarization:

Vertical

Locking System:

FAKRA Z jack (SMB)
